Name: 2021 joyance 16l 20 liters Agriculture Spray Drone
Brand: Innovaciones Globales
SKU: 196890663011003_262318664
Price: 11278.15 USD
Availability: InStock

2019 joyance best selling 15 20 liters uav sprayer / agricultural spraying drone for sale

Product Parameter

Technical parameter	JT10L-606	JT16L-404QC	JT30L-606	JT20L-606
Pesticide load	10 Liters	16 Liters	30 liters	20 liters
Self weight	10.5 KG	18 KG	27.5 kg	18.5 kg
Take-off weight	22 KG	40 KG	67 kg	44 kg
Fly time	10-15 Min	10-15 Min	10~15 min	10~15 min
Spraying efficiency	5-6 Hectares/hour	8-10 Hectares/hour	12~15 Hectares/hour	9~11 hectares/hour
Spray width	4-6 M	6-7 M	8~10 m	7~8 m
Spray speed	0~8 M/S	0~8 M/S	0~10 m/s	0~10 m/s
Nozzle	2 centrifugal nozzles	8 high pressure nozzles	12 high pressure nozzles	4 centrifugal nozzles
Battery	2 pcs 6S 17000 mAh	1 pc 14S 20000 mAh	1 pc 14S 28000 mAh	2 pcs 6S 23000 mAh
Flying radius	1000 M	1000 M	1000 m	1000 m
Spray flow	1~1.5 L/Min	2~2.5 L/Min	3.5~4 L/min	2.5~ 3 L/min
Flying height	0~30 M	0~30 M	0~30 m	0~30 m
Work temperature	–10~70 ℃	–10~70 ℃	–10~70 ℃	–10~70 ℃
Work humidity conditions	0-90%	0-90%	0-90%	0-90%
Wind resistance	10 m/s	10 m/s	10 m/s	10 m/s
Spread size (m)	W1.3 * L1.3 * H0.45	W1.5 L1.5 H0.7	2.11.85 0.8 m	*1.95 1.95 * 0.57 m**
Folded size (m)	W0.6 * L0.6 * H0.51	W0.85 * L0.85 *H0.7	1.2 * 0.9 *0.8 m	*0.7 0.7 0.8 m*
Aluminum box size / weight	736765 cm / 50 kgs	989275 cm / 70kgs	15410594cm / 80 kgs	*758595 cm / 80 kgs*

Products Description

Drone Applications

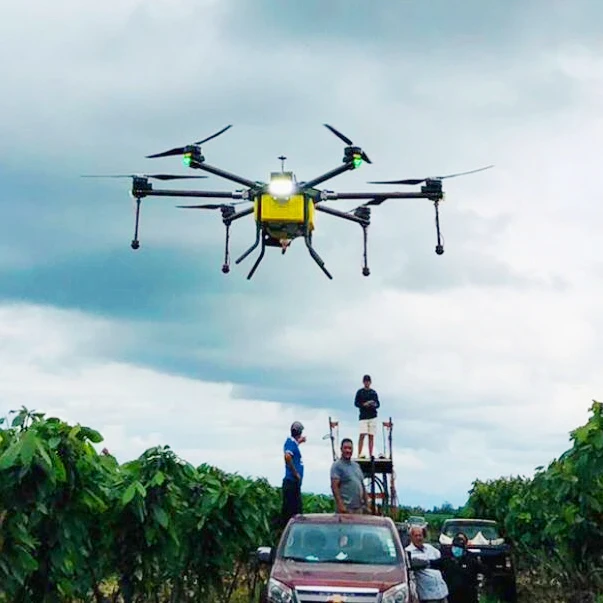

JOYANCE drones have been widely used for crop protection, mosquito control, and public disinfection.

Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.

Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.

Joyance Tech provides OEM/ODM services for agriculture drones.

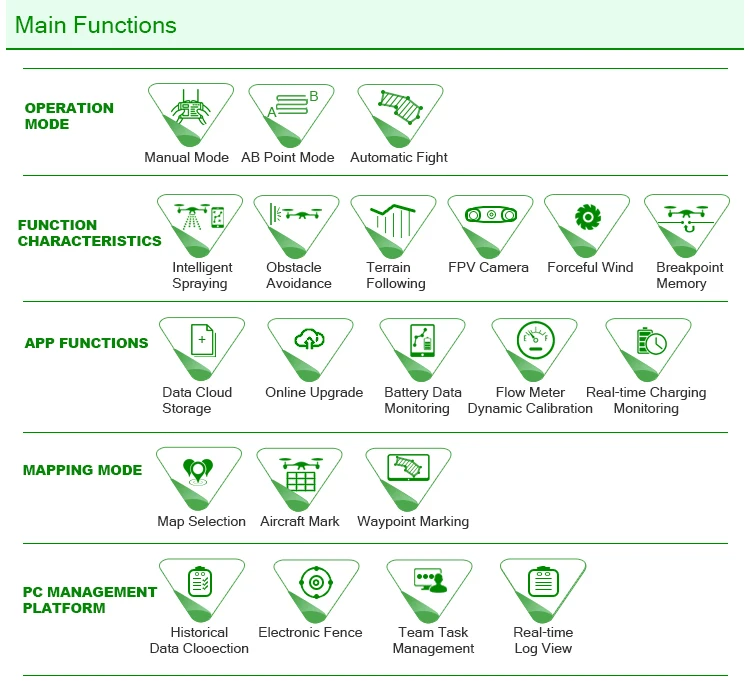

Product Feature

Operation mode : manual mode, AB point mode, autonomous flying mode

Functions :
One key return and land
Break point memory

Night operation

Obstacles avoidance

Terrain following

FPV camera

U turn

Solid seeds and fertilizers spreading tank
APP functions :
Data cloud storage

Online upgrade

Fault detection

Battery date monitoring

Flow meter dynamic calibration

real time FPV monitoring

Sprayer & Spreader 2 in 1 drone

Joyance agriculture sprayer drone with granule spreader can spread solid fertilizers, granule fertilizer, seeds, sows, feed and so on. Besides it can be switched spraying system and spreading system by one-key. Also Sprayer & Spreader 2 in 1 drone = save lots of cost

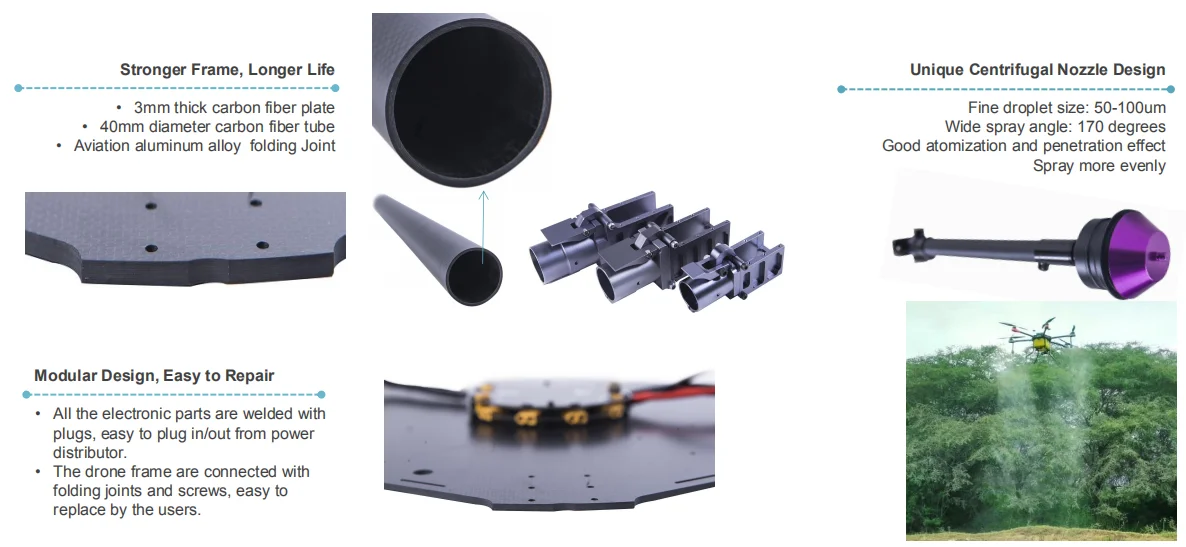

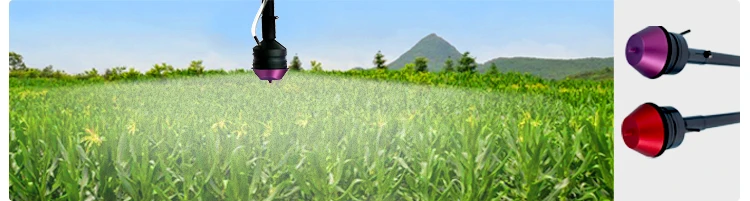

4 pcs Centrifugal Nozzles

Centrifugal nozzles has a better atomization and penetration effect . ● 50-200 um droplet diameter ● Spray degree: 170 ● Not easy
to block. ● More suitable for spraying in orchards, crops, vegetables, rice, corn, etc.
