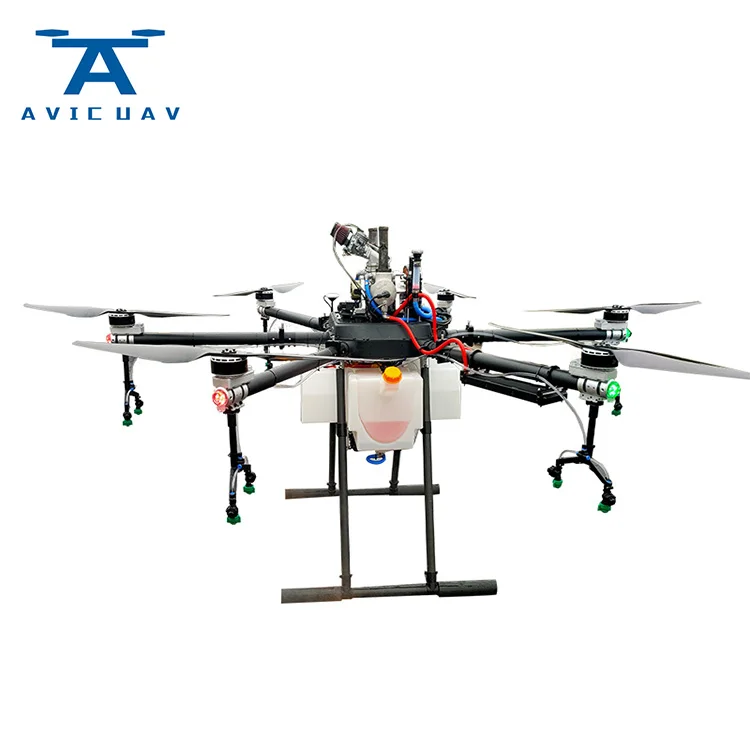

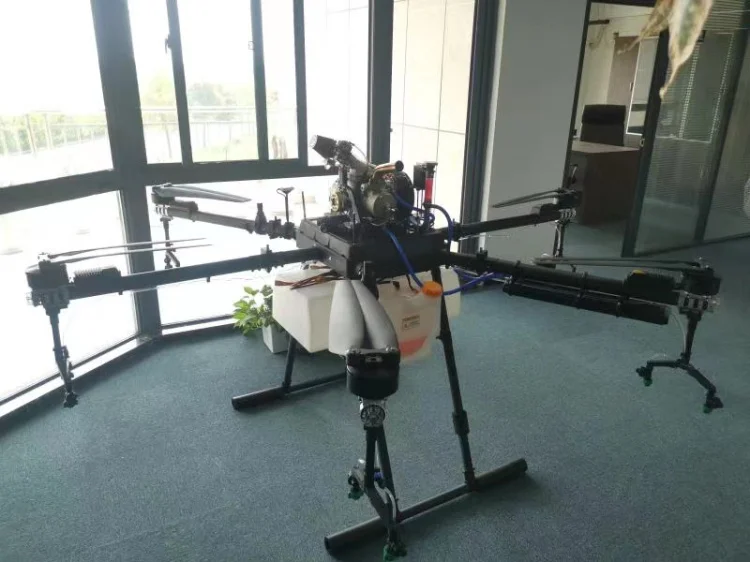

 agricultural drone

AVICUAV

model

AVIC-60(oill drive)

full name

eight-axis water mist machine

optional configuraton:

Obstacle, Sow,camera,RTK

base configuration:

Manual + automatic flight

The wheelbase

2300mm

Number of shaft

6axes

Height of homework

30m ( max: 300m)

spreaded size(excluding propeller)

1050*1080*1350mm

folded size (machine arm folding)

2300*2300*1350mm

Machine weight (excluding engine)

42kg,engine: 20kg ,oil tank:9L

Machine weight (including battery)

71kg

Max flight weight

127kg

Nozzle

Ceramic sprinkler head imported from Germany/China

The number

6pcs

Flight Speed

3-10  Meter /Sec

Spray width

12-15Meter /Sec

Max spraying flow

5-10 kg/min. (Max. 10kg/min.)

spaying efficiency

5-8 Acres/Min.

Water Pump Pressure /

1mpa 7L/Min

after package total size

wood Box   1450*1500*1140mm   80kg ,parts:8.34kg

after package total weight

159.34kg

The fuselage material

Aviation composite

Max flight time (no load)

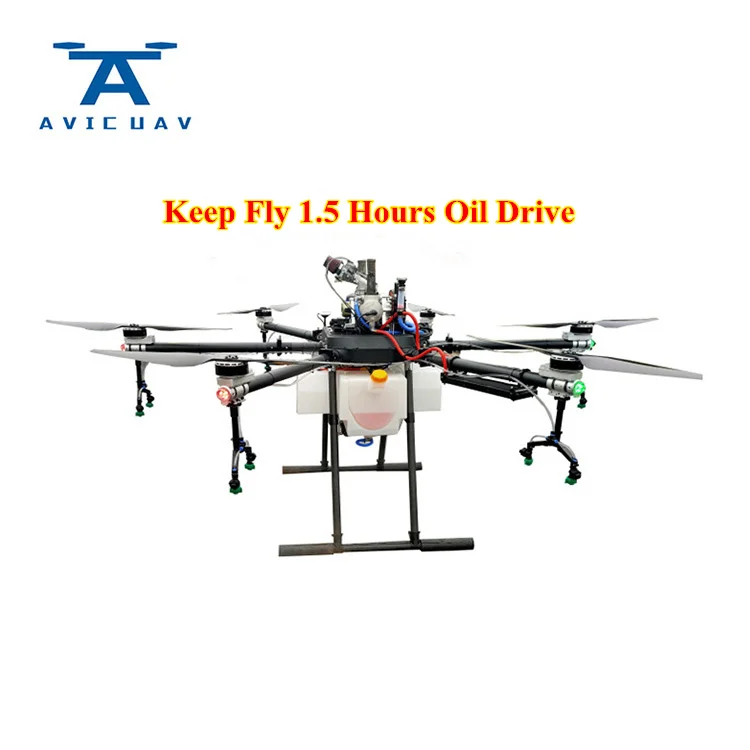

1.5hour (fly 10min need  1L oil,Fuel tank can be equipped according to actual demand)

Max flight time (full load):

1.2hours

The cabinet volume

60L

Working temperature work

  -15°C~45°C

Signal effective range

10km

Spraying System

Pressure Spray

Engine brand

Zongshen (Famous motorcycle brand in china,)

Engine displacement

340CC /18KW

Fuel tank capacity

9L

Engine fuel

Steam electric oil mixture (1:40)

Max wind resistance rating

8 m/s

Daily efficiency(6hours)

2000acres

Storage ambient temperature

For less than 3 months: - 20 ° C ~ 45 ° C
For more than 3 months: - 22 ° C ~ 28 ° C

Hover time

1.5 hours(take-off weight 67kg)
1.2hours(take-off weight: 127kg)

Standby time of remote control

12hrs

 load of the medicine cabinet

60kg
