Durable Quality 10 15 20Kgs Capacity Dron Para Fumigar Agricola Spray Drone

Durable Quality 10 15 20Kgs Capacity Dron Para Fumigar Agricola Spray Drone

Sprayer drone Description

Type: Agri sprayer drone

Model: JT10L-606
Tank size: 10L/ 10kgs
Spray width: 4 - 6 meters
Coverage: 5-6 hectares/hour (1ha=2.5acres)
Highlights: Economical and cost-effective

Agriculture drone Application:
sowing seeds → solid fertilizer scattering → herbicide/insecticide/bactericide/pesticide spraying → foliar fertilizer spraying
Technical parameter
JT10L-606
JT15L-606
JT15L-608 Pro
JT20L-606
Pesticide load
10 liters
15 Liters
15 liters
20 liters
Self weight
10.5 kg
13.5 kg
20 kg
18.5 kg
Take-off weight
23 kg
31 kg
39 kg
44 kg
Fly time
10~15 min
10~15 min
10~15 min
10~15 min
Spraying efficiency
5~6 hectares/hour
7~8 hectares/hour
8~10 Hectares/hour
9~11 hectares/hour
Spray width
4~6 m
6~7 m
8~10 m
7~8 m
Spray speed
0~8 m/s
0~8 m/s
0~10 m/s
0~10 m/s
Nozzle
2 centrifugal nozzles
2 centrifugal nozzles
4 centrifugal nozzles
4 centrifugal nozzles
Battery
2 pcs 6S 17000 mAh
2 pcs 6S 17000 mAh
2 pcs * 6S 23000 mAh
2 pcs * 6S 23000 mAh
Flying radius
1000 m
1000 m
1000 m
1000 m
Spray flow
1~1.5 L/min
2~2.5 L/min
2.5~3 L/min
2.5~ 3 L/min
Flying height
0~30 m
0~30 m
0~30 m
0~30 m
Work temperature
–10~70 ℃
–10~70 ℃
–10~70 ℃
–10~70 ℃
Wind resistance
10 m/s
10 m/s
10 m/s
10 m/s
Spread size (m)
1.3 * 1.3 * 0.45 m
1.8 *1.8 * 0.48 m
2.7 *1.55 * 0.5 m
1.95 *1.95 * 0.57 m
Folded size (m)
0.6 * 0.6 * 0.51 m
0.7 * 0.7 * 0.63 m
0.85 * 0.75 *0.7 m
0.7 * 0.7 *0.8 m
Aluminum box size/weight
73*67*65 cm / 50 kgs
75*75*81 cm/70kgs
81*81*86 cm/80 kgs
75*85*95 cm/80 kgs

Agriculture sprayer drone Basic Function

Remote controlled and fully automatically operation in APP for drone uav sprayer 1. A key to take off and landing.(easy to operate) 2. Autonomous flying with APP. 3. Avoid re-spraying seedlings or missing spray with record and do break-point continue-spraying 4. Intelligent flow adjust control 5. APP maps, plans operating route and route will be saved automatically for next operation 6. Fail-safe self protection 7. Cloud service and team management 8.Dosage Monitor 9.Low Voltage & Volume Warning, drone back to site automatically 10.FPV camera with light transferring real image in front of drone (optional) 11.Terrain following radar(optional) 12.Obstacle avoidance radar(optional) 13.Granule spreader to scatter seeds fertilizer(optional)

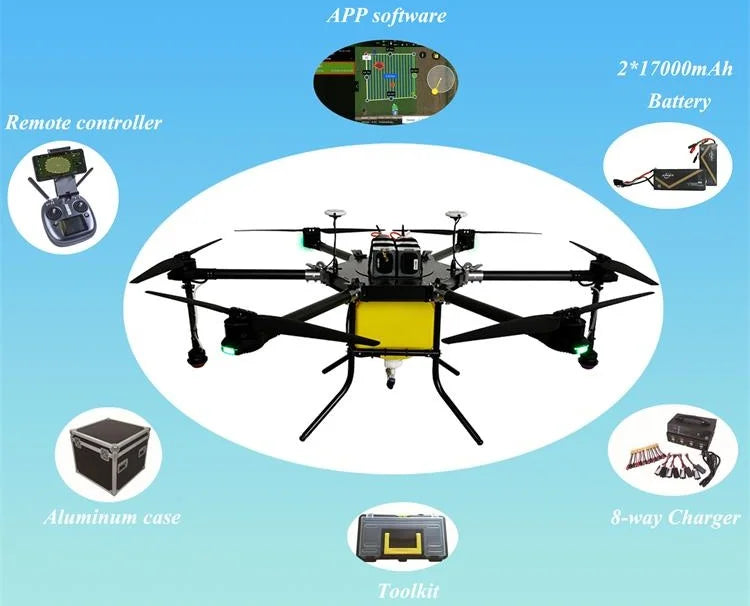

Sprayer drone Details Images

① Motor

it's waterproof
working hours ≥2,000 hours with long service life

② Centrifugal nozzles

Spray degree: 170 °
Droplet size: 50-200 microns tiny size Equipment: brushless ESC and motor inside

③ Aluminum folding jouint

Foldable, fasten and strong to bear heavy work

④ Propellers
Foldable carbon fiber propellers

⑤ Water pump

Pumping water

⑥ Li-po batteries

6S 17,000/23,000mAh Li-po batteries
≥300 cycles service life

⑦ Central plate

Made of thicker carbon fiber.
Light, strong and waterproof

⑧ Remote controller

Simple pratical RC design to be easier operating
dustproof and waterproof

⑨ Agri assistant App

It can be installed on the phone or tablet to do automous flight.
